Several of the Colorado repeater clubs use voting receivers on their repeaters to extend coverage into the Colorado foothills. Their early installations hand wired the Micro-Node RTCM, a GPS receiver and an RS-232 console connector for each deployment.
One of the builders of these systems asked for a proposal on how to simplify these installs. He wanted the install to be more plug-n-play.

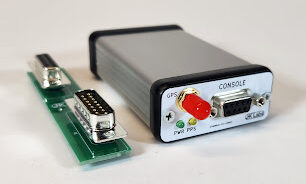

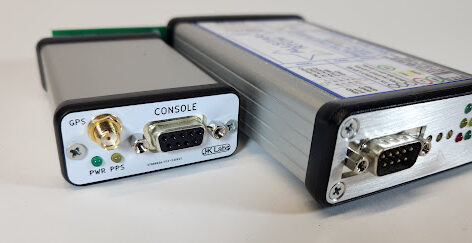

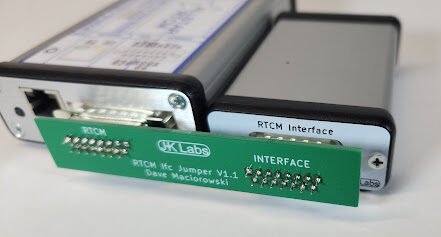

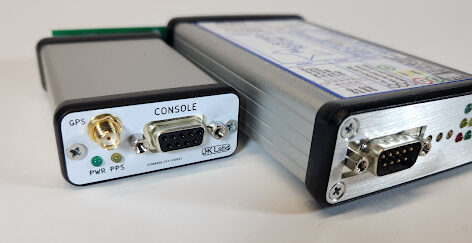

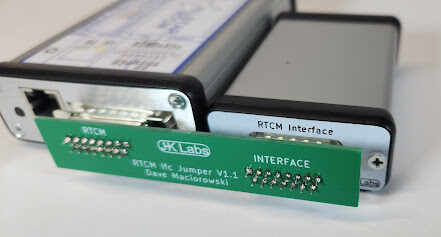

What you see here is the result of the proposal. A circuit board jumpers the signals of the RTCM 15-pin connector to the RGCI. Within the RGCI is a u-blox NEO-M8 GPS receiver. Connect an active GPS antenna to the RGCI antenna
connector. The RTCM console is accessed via the RS-232 DE9F Console connector. Power is supplied from the RTCM.
GPS Receiver
- u-blox NEO-M8
- TTL, 9600 Baud to RTCM
External Connections
- GPS Active Antenna Connector
- RTCM RS-232 DE9F Console Connector
- RTCM-to-RGCI 15-pin Jumper
Other Features
- GPS Active Antenna Connector
- RTCM RS-232 DE9F Console Connector
- RTCM-to-RGCI 15-pin Jumper
Documentation
Availability
- 2 In Stock, More on the Way!
Pricing
- $70 Hamvention Pricing Continues
Ordering
- Call or Email…
